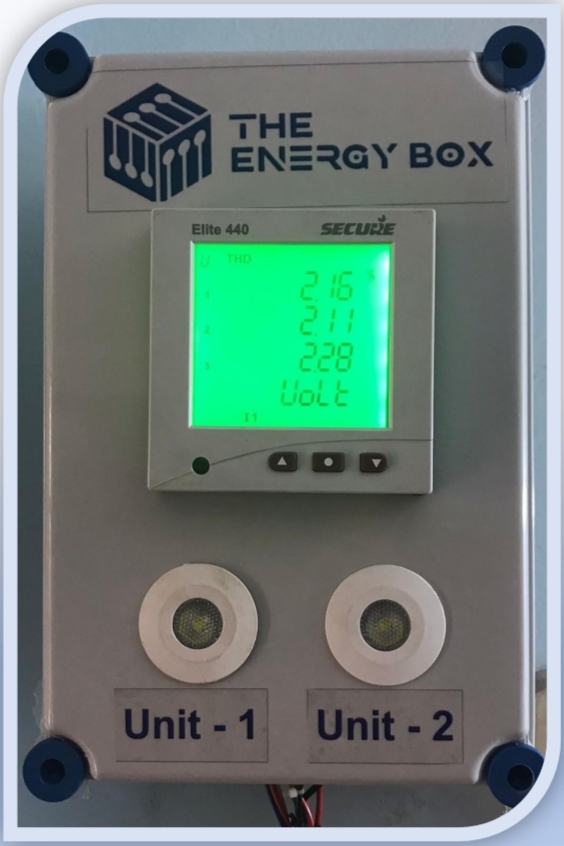

Key Points:

1. It can CAPTURE REAL-TIME DATA from any digital signal (RS 485 or RS 232)
2. Single Energy box can be linked with 6 units ( like 6 energy meters) of same identity.
3. We are capturing more the 40 PARAMETERS FROM ENERGY METER FOR ANALYSIS.
4. Every parameter is displayed in the FORM OF GRAPH on our web portal and mobile application.
5. We are consuming DATA PACKETS AT EVERY 10 SECOND from the device and saving it on
our server.
6. Dashboard will be AUTO REFRESH AFTER EVERY 2 MINS of data on the graph.
7. We are using DATA RECOVERY MECHANISM which reduce loss of data to 0 % even if internet is not available for more than 24 hrs.
8. We use hybrid protocol and data encryption for SECURE DATA TRANSMISSION.

Offerings:
9. Real-time data monitoring of 40+ digital parameter.
10. Analysis on energy savings.
11. AUTOMATED ALERTS and customised reports.
12. Predict the FUTURE CONSUMPTION TREND based on data.

13. Optimise the bidding in open access.
14. Reduce the possibilities of MD PENALTIES TO ZERO.
15. Provides CONSUMPTION TREND from Grid, solar and wind energy plants.
16. Can be used to automate the operations in different furnace for FUEL AND ENERGY SAVING.
17. Can reduce the ENERGY WASTAGE by switching on/off any device/instrument/machinery from remote.
18. Can be installed on any digital instrument.
19. Switching can be automated / manual.


Benefits in Industrial Plants:

1. Energy box will help you to MONITOR YOUR LOAD DISTRIBUTION AND PF on all 3-phase individually.
2. Because inductive circuit, Current lags 90° from Voltage which cause DROP IN PF & PF is directly proportional to energy loss, this will help you to make sure that you are paying for what you are consuming.
3. During the peak load, there is a possibility that load may exceed sanction MD (Maximum Demand), because of which you have to pay penalty. Energy box will help you to manage your consumption during peak load and REDUCE THE CHANCES PENALTY TO ZERO.
4. You can STOP WASTAGE OF ENERGY by switching (on/off) any instrument/load in industry from remote using our mobile app or web interface.

Features:

1. You can add multiple alerts on multiple parameters.
2. These alerts are custom one i.e. you can set the condition base don which our system will send an notification on added mobile number and email.
3. These alerts can be reoccurring in nature i.e. If any abnormal condition occurs continuously for long then our system will keep sending the alerts until normal condition restored or you disable the alert manually.
4. You can add up-to 10 numbers and emails for every alert.

For Quotation and device demo,
Click on icon below to contact us on Whatsapp

Key Points:

1. Lights on the poles on the highway/street will be controlled in auto mode for switching it ON/OFF. In auto mode, light will be controlled automatically with sensing the ambience light or by clock timing based controls from IOT web portal.

2. Energy meter will be placed at a group level and its electrical parameters will be pushed over cloud server for logic generation. Lights allocation will be approximately 468 Lights grouped over 10 junction boxes. Per light wattage is 196W. Among all the groups, maximum lights over one pole can be 80.

3. Controller and complete system will be mounted in a panel which in turn will be mounted on electric pole or at some outdoor points. Device will be able to bear with the external environment, temperature, humidity, Dust levels persisting in Delhi NCR area.

4. The contactors are rated to bear with almost double the value of current passing through the junction in present state.



5. Device communicates with cloud to send/receive data in every 20Secs from below. Parameters include incoming power current, Energy reading, Photo sensor reading. Readings will be saved on cloud with time stamps and it can be accessed through IOT dashboard. Device will have its own internet based on SIM.

6. Hard Bypass switch will be provided to forced ON/OFF the Street lights at device location manually but the readings will still be communicated with cloud. Status will be updated on dashboard if it is forced switched.

7. Choice will be available on IOT dashboard to set switching of lights either with time based control or photo sensor value based control.

8. The meters will be approved by relevant authority so that the electricity board accepts the meter reading.


Calibration mode:

lights switching can be calibrated based on photo sensor value. It can be calibrated @ individual junction box level by an authorized person / by the vendor through IOT dashboard remotely as well as can be calibrated locally by IOT dashboard with limited access using QR code. It can calibrated with photo sensor value for night time (to ON Street Light) and morning time (to OFF Street light).

Current level based alerting:

The power consumption can vary as the pillar light units age. The usual current / power taken by the group of pillar lights when switched on and in a stable glow status, the level of power consumed is recorded and stored on cloud with time stamps. (This power consumption is compared with the regular power consumption to detect if any of the lights are fuse & hence the power consumption for the group has reduced)

Warranty:

The system provided should have a life of minimum 8 years whereas the warranty against any manufacturing or design defects needs to be covered for one year. - The warranty would be on site, in case the fault is not resolved through parts replacements within stipulated time. - Free pre-paid SIMs & Cloud hosting for one year

Training & guidance:

Training needs to be provided to relevant staff and technicians through face to face or remote sessions in groups. User manual for the system needs to be supplied along with the system. For 6 months, the fixing of the fault assistance would be provided on site- or off site, in case the fault is not resolved through parts replacements within stipulated time with the offsite efforts, this needs to be attended with being on site. - Any bugs, if found in the software would need to be resolved within stipulated time.

For Quotation and device demo,
Click on icon below to contact us on Whatsapp

NET-O-BOX, it is an IOT based telemetry control and monitoring system which can be used to switch home appliances and industrial devices from any place on the globe. It makes use of Internet to receive and send control codes. Control codes are stored and accessed on cloud server. For protection, each user will be provided with login id and password to access his GCP (Graphical Control Panel) at cloud server to control devices. GCP is a user friendly online panel to control NET-O-BOX. It will be provided with two switching method, first using internet and second using simple ON/OFF switch. It means user can switch the device with his smart phone as well as another person can switch it directly from the switches on NET-O-BOX. Since it performs two way communications (means device to server and vice versa), the current status of the device will also be updated on the GCP as the device will be switched. The available status of NET-O-BOX is DEVICE ON, DEVICE OFF & DEVICE OFFLINE. User can add any number of NET-O-BOX in his premises to switch multiple devices; with the addition of every NET-O-BOX in single premises, all such NET-O-BOX will be available on a single GCP. No installation is required for NET-O-BOX, neither in smart phone (no additional application is required to install in your smart phone or laptop, since it is platform independent) nor at your home in hardware (since it is plug & play device). Any number of members can control the same series of NET-O-BOX by sharing same user id & password.

Applications
- It can be used to switch Air Conditioner (AC) few minutes before reaching home to get cooler inner environment.
- To switch water pumps at your home/ irrigation field to fill water tank/sparkling water in the field with no requirement of availability of a person       at the switch location.
- To switch light based display hording at your office premises from your home at late night.

NET-O-BOX Documentation & Installation Guide: Click Here

For Quotation and device demo,
Click on icon below to contact us on Whatsapp

Atome Version 1.0 is a multipurpose Development board of AVR family MCU ATmega8 microcontroller. It has been used in industries for automating appliances and industrial devices as well as for instrumentation of any already existing product.

It is also been readily used with its available extension boards and code libraries by the academician for inculcating automation skills in electronics, electrical & computer science engineering students & scholars.

Atome board is very easy to use Development board with its tutorials and libraries available on this website in tutorial section.

NOTE: Apart from available extension boards if anybody required his own customized design of extension board then they can contact us. Board will be prepared and couriered to their address and person can follow up using our whatsapp number given in contact us about the progress status of his order.

Features:
1. ATmega8 development board.
2. 16 MHz crystal for maximum speed.
3. All ports available with double sided male headers.
4. USB B-type female connector to give power supply to the board.
5. 5v regulated output for supplying extra peripherals.
6. Reset Button.
7. Power Indicator LED.
8. USB cable included with board.
9. Various headers belongs to different extension boards are available. Therefore extension boards are very easy to connect.

Documentation:

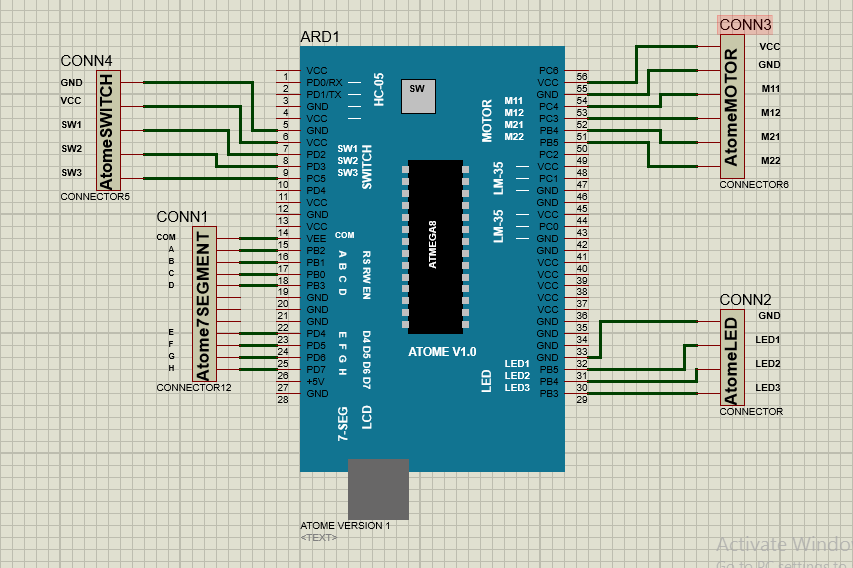

1. Schematics of the board (Circuit Diagrams)
2. Code for inbuilt motor driving timer circuit.
3. Tutorials for Atome Version 1.0.

AtomeUSBASP is a programmer for AVR family microcontrollers like ATmega8/16/32 etc. It is made fully compatible with Atome Version 1.0 Development board. There is a section with group of male headers to connect it directly without using any wires. It is USB based programmer.

It is also compatible with other development boards based on AVR family microcontroller in market.

Compatible Operating systems:
- Windows XP/Vista/7/8/10 Both 32bit and 64bit versions.

Procedure to install driver:
-Windows XP/Vista/7.
-STEP1 : Windows 8 and Higher versions.
-STEP2 : Windows 8 and Higher versions.

Downloads:
-Driver for AtomeUSBASP.

AtomeMOTOR is an extension board with motor driving IC L293D which is capable of running four motors unidirectional and 2 motors in reverse forward both. It is made fully compatible with Atome Version 1.0 Development board. There is a section with group of male headers to connect it directly without using any wires which makes it very easy to use. An additional socket is provided to give 9/12 volt supply from adapter to run motor.

It is also compatible with other development boards based on AVR family microcontroller in market.

Documentation:

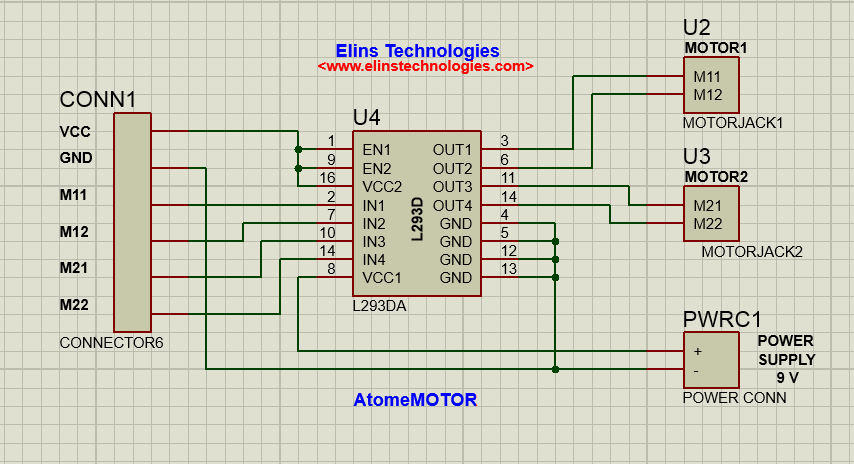

-Schematics of AtomeMOTOR board (Circuit Diagrams)
-Tutorial for AtomeMOTOR.

Atome7SEGMENT is an extension board with a single seven segment display which can display numbers from 0 to 9. It is made fully compatible with Atome Version 1.0 Development board. There is a section with group of male headers to connect it directly without using any wires which makes it very easy to use.

It is also compatible with other development boards based on AVR family microcontroller in market.

NOTE: Header file to interface Atome7SEGMENT is given below in documentation section, functions in header file can be used directly to run 7 segment display very smoothly and make it easy to use. This header file is only compatible with Atome Version 1.0 development board.

Documentation:

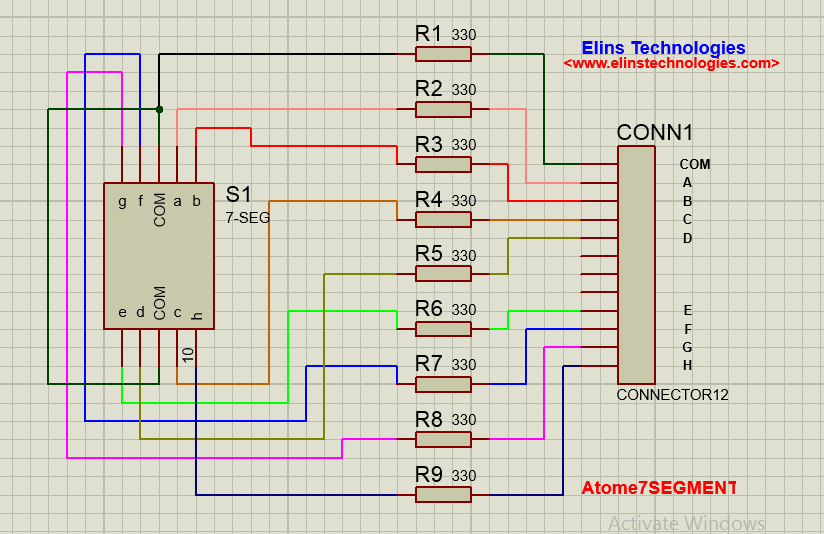

-Schematics of Atome7SEGMENT board (Circuit Diagrams)
-Header file for Atome7SEGMENT.
-Tutorial for Atome7SEGMENT.

AtomeLED is an extension board with three LEDs on it. It is made fully compatible with Atome Version 1.0 Development board. There is a section with group of male headers to connect it directly without using any wires which makes it very easy to use.

It is also compatible with other development boards based on AVR family microcontroller in market.


Documentation:

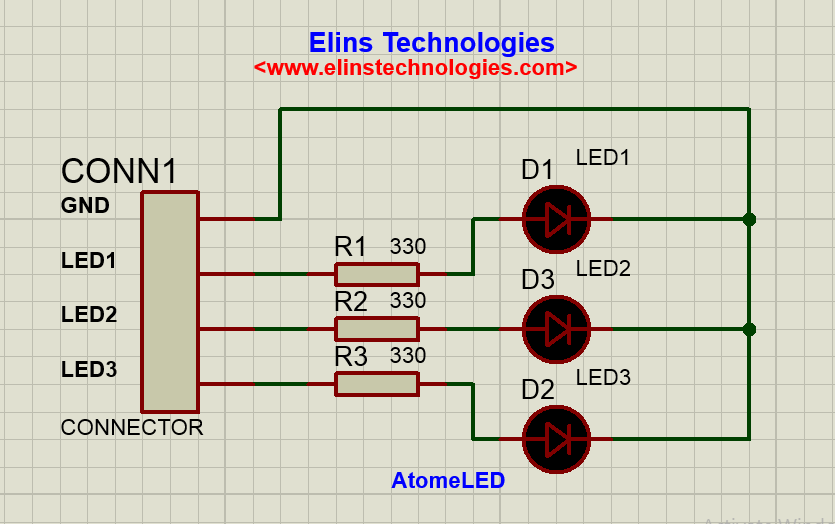

-Schematics of AtomeLED board (Circuit Diagrams)
-Tutorial for AtomeLED.

AtomeSWITCH is an extension board with three switches in pull up mode. It is made fully compatible with Atome Version 1.0 Development board. There is a section with group of male headers to connect it directly without using any wires.

It is also compatible with other development boards based on AVR family microcontroller in market.



Documentation:

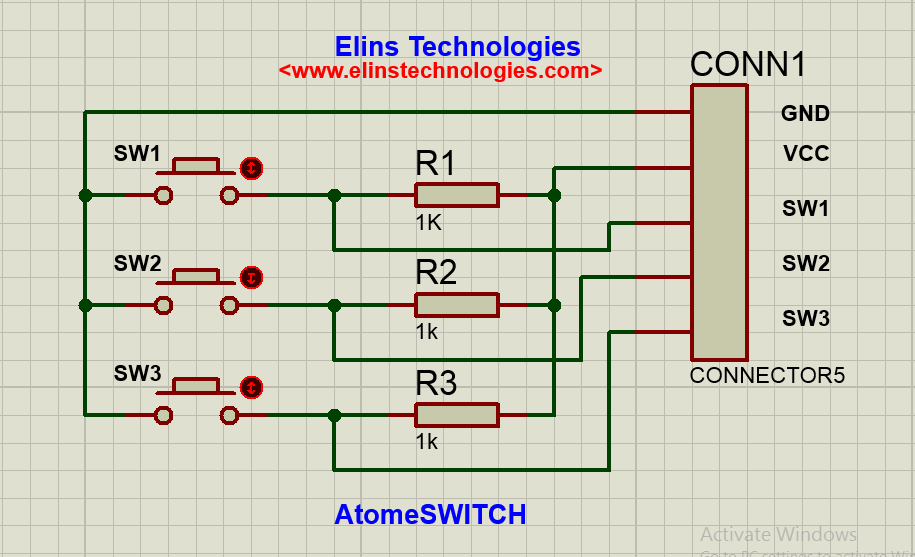

-Schematics of AtomeSWITCH board (Circuit Diagrams)
-Tutorial for AtomeSWITCH.
